6800 IP Phone Series

The 6800 IP Phones
6800 Phone Series
The 6800 Series delivers a powerful set of IP phones designed for all levels of your business. These open SIP phones integrate effortlessly with your Mitel platform and applications to provide a user-friendly and smooth calling experience.

Increase Your Work Efficiency
Increase your work efficiency with the Mitel 6800 Series’ wide range of add-on accessories. You can install the accessories yourself and tailor your phone to your specific work style, whether in the office or at home. (Accessory support varies depending on 6800 IP phone model and platform.)

Is this product right for you?
Find the ideal product for your needs, or request a demo from one of our experts.
Benefits of 6800 IP Phone Series

Enterprise-Grade SIP Phones
The Mitel 6800 Series offers a range of feature-rich phones that include graphical color displays, GigE Ethernet ports, and support for DHSG/EHS headsets.

Energy Star
Mitel is an ENERGY STAR partner participating in the ENERGY STAR program for Enterprise Servers and Telephony that prevents greenhouse gas emissions by meeting strict energy efficiency criteria or requirements set by the U.S. Environmental Protection Agency.

Unprecedented Flexibility
Customize your phones for unmatched versatility with a broad array of add-on IP phone accessories.

Extensive SIP Interoperability
The Mitel 6800 Series is a family of powerful and modern SIP phones that offers advanced interoperability with major IP telephony platforms.

Outstanding Audio Quality
Mitel’s Hi-Q audio technology delivers exceptional quality with high-definition sounds for an unmatched communications experience.

Hearing Aid
The 6800 voice optimized handsets are hearing-aid-compatible (HAC) and supports magnetic coupling for HAC hearing aids.
Mitel 6873 SIP Phone
The 6873 SIP Phone is a powerful, executive IP deskphone with SIP support for on-prem and cloud environments. It features a large 7-inch color touchscreen display, high-speed networks through dual Gigabit Ethernet ports, built-in Bluetooth, and a powered USB port for headsets. It includes outstanding HD wideband audio, enhanced speakerphone, and advanced audio processing for crystal-clear, hands-free conversations.
A built-in QWERTY touchscreen keyboard, icon-based navigation menus, and intuitive user interface with up to three optional expansion modules provide both executive and advanced users with a robust, productivity-enhancing desktop communications tool that is still very easy to use.

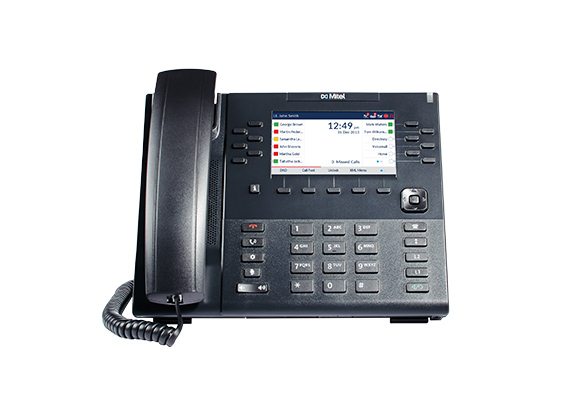

Mitel 6869 IP Phone
This powerful SIP phone gives you a large 4.3-inch backlit LCD color display with advanced audio processing. The phone can be tailored to your specific communications needs and supports high-speed networks through dual Gigabit Ethernet ports. When equipped with an optional detachable keyboard and up to three expansion modules, the 6869 Phone becomes a robust, productivity-enhancing desktop communications tool.

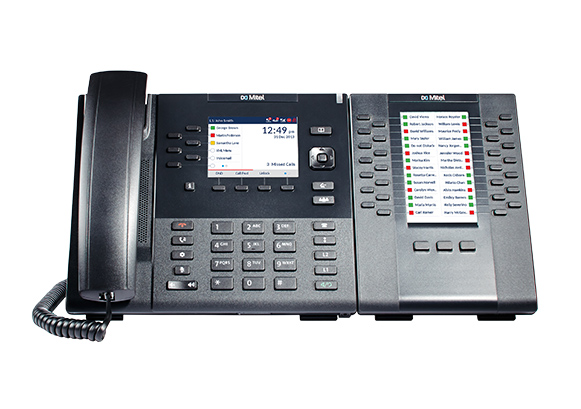

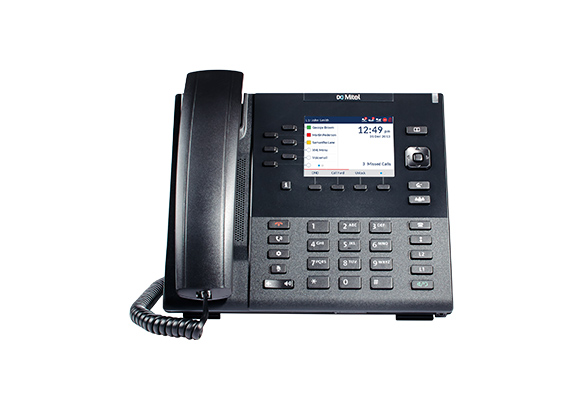

Mitel 6867 IP Phone
The 6867 IP Phone is designed for users who demand a lot from both their phones and their networks. This open-standard SIP phone delivers exceptional HD wideband audio and an enhanced speakerphone that features advanced audio processing to achieve richer and clearer hands-free conversations. It supports high-speed networks through dual Gigabit Ethernet ports, offers a large color display, programmable soft keys, programmable context-sensitive system keys, and native DHSG/EHS headset support. When equipped with an optional detachable keyboard and up to three expansion modules, the 6867 becomes a productivity-enhancing, 24-line desktop communications tool.

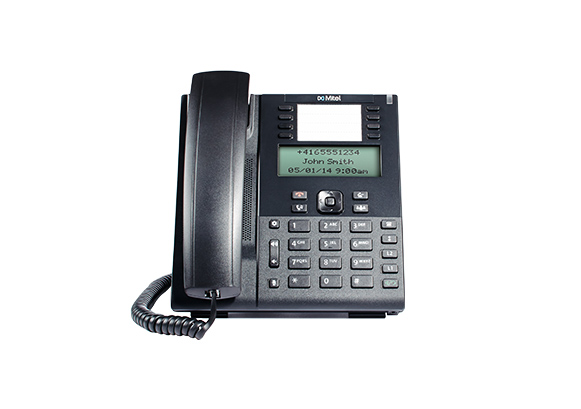

Mitel 6865 IP Phone
This feature-rich and affordable business SIP phone offers exceptional flexibility for the home or business office. It delivers exceptional audio quality with an extensive storage capacity for personal directories, callers logs, redial lists, and programmable key entries that allow you to easily manage access to frequently used call management features.

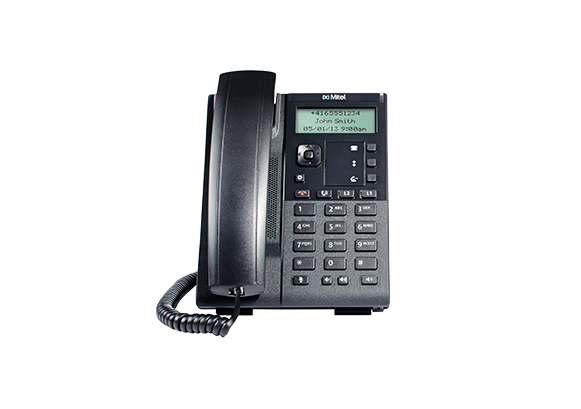

Mitel 6863 IP Phone
The Mitel 6863 IP Phone brings remarkable value to your enterprise. Sleek and modern in design, this two-line SIP phone with 2.75” (128x48 pixel) monochrome LCD display, programmable hard keys, and smaller desktop footprint is an ideal option for professional workers in business environments with light telephone usage requirements. It features dual 10/100 Mbps Ethernet ports, PoE class 1, three programmable soft keys and 4-way navigation key with Select/OK button.

6800 IP Phone Accessories
Personalize your phone with a broad array of add-on accessories. The 6800 IP Phone Series shares the same accessories with the 6900 IP Phone Series, including Cordless Bluetooth handset, Wi-Fi adapter, M695 and Wall mount kit. In addition, the 6800 IP Phone Series also supports M680 and K680.


ENERGY STAR is a U.S. Environmental Protection Agency voluntary program that helps businesses and individuals save money and protect our climate through superior energy efficiency. Products that earn the ENERGY STAR prevent greenhouse gas emissions by meeting strict energy efficiency criteria or requirements set by the U.S. Environmental Protection Agency. Learn more at: energystar.gov
Mitel is an ENERGY STAR partner participating in the ENERGY STAR program for Enterprise Servers and Telephony. Mitel Deskphones listed with the ENERGY STAR logo have earned the ENERGY STAR
Additional Devices
FEATURES COMPARISON
Features | 6873 SIP Phone | 6869 IP Phone | 6867 IP Phone | 6865 IP Phone |
---|---|---|---|---|
Screen (pixels) | 800x480 LCD Touch | 480x272 color LCD | 320x240 color LCD | 128x48 color LCD |
Context-sensitive softkeys | 30 | 5 | 4 | N/A |
Programmable physical keys | Touch | 12 | 6 | 8 |
Full-duplex high-quality speakerphone | Yes | Yes | Yes | Yes |
Bluetooth | BT 4.0 | N/A | N/A | N/A |
POE | 802.3af Class 3 | 802.3af Class 3 | 802.3af Class 2 | 802.3af Class 2 |
USB | 2.0 | 2.0 | 2.0 | 2.0 |
Cordless handset | Optional | N/A | N/A | N/A |
Cordless BT handset | Yes | N/A | N/A | N/A |
S720 BT speakerphone | Yes | Yes | Yes with BT dongle | N/A |
Wi-Fi adapter with PoE | Yes | Yes | Yes | Yes |
M695 extension module | Yes | Yes | Yes | Yes |
Wall mount kit | Yes | Yes | Yes | Yes |
M680 Extension Module | Yes | Yes | Yes | Yes |
K680 Detachable Magnetic Alphanumeric Keyboard | Yes | Yes | N/A | N/A |
